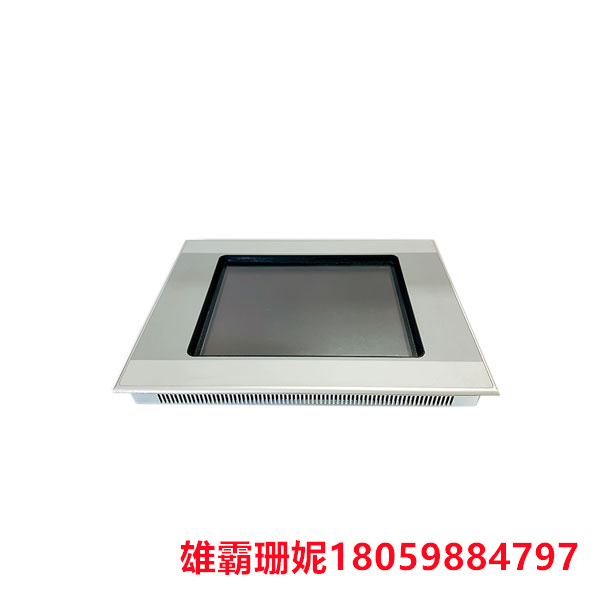

EATON XVS-440-10MPI-1-10 触摸屏

品牌：EATON

型号：XVS-440-10MPI-1-10

名称：触摸屏

质保：一年

联系电话：18059884797

详细介绍

XVS-440-10MPI-1-10 触摸屏

触摸屏，红外， 24 V DC， 10.4z， TFTcolor，以太网， RS232， profibus，（PLC）
用户界面， XVS400，产品系列： XVS400 10.4“，功能： HMI-PLC （PLC venefitted by user），该型号系列的共同特点：以太网接口， USB设备， RS232， Profibus/MPI， UL508， cUL认证， PLC功能可由用户安装，通信范围可由用户安装许可证，显示 - 类型：彩色显示， TFT，触摸技术：红外线触摸，颜色数量：可调：65536 或 256 色，分辨率：VGA，640 x 480 像素，纵向格式：是，屏幕对角线：10.4 英寸，金属外壳和前面板，操作系统：Windows CE（需要许可证），需要 CompactFlash 卡，PLC 许可证：可由用户安装，货号为 140390 LIC-PLC-MXP-MEDIUM，板载接口的许可证证书：可根据需要进行扩展，请参阅附件 -> 许可证产品证书，内置接口： 1 x 以太网 100base-TX/10base-T， 1 x RS232， 1 x PROFIBUS/MPI， 2 x USB 主机， 1 x USB 设备，前置类型：标准前面板，带标准膜，夹层安全玻璃，非反射，利用：嵌入式安装，插槽：用于 Compact-FlashTM 卡： 2，存储卡自动化：必需，请参阅附件 -> 存储卡，可插拔通讯卡（可选）：否，散热： 24 W，防护等级（IEC/EN 60529， EN50178， VBG 4）： IP65 （正面）， IP20 （背面）
EATON XVS-440-10MPI-1-10 触摸屏

Touch screen, infrared, 24 V DC, 10.4z, TFTcolor, Ethernet, RS232, profibus, (PLC)
User interface, XVS400, Product series: XVS400 10.4 ", function: HMI PLC (PLC invented by user) The common features of this model series are Ethernet interface, USB device, RS232, Profibus/MPI, UL508, cUL certification, PLC function can be installed by the user, communication range can be installed by the user license, display type: color display, TFT, touch technology: infrared touch, color quantity: adjustable: 65536 or 256 colors, resolution: VGA, 640 x 480 pixels, vertical format: Yes, Screen diagonal: 10.4 inches, metal casing and front panel, operating system: Windows CE (requires license), requires CompactFlash card, PLC license: can be installed by the user, product number 140390 LIC-PLC-MXP-MEDIUM, license certificate for onboard interface: can be expanded as needed, please refer to attachment ->License product certificate, built-in interface: 1 x Ethernet 100base-TX/10base-T, 1 x RS232, 1 x PROFIBUS/MPI, 2 x USB host, 1 x USB device, front type: standard front panel, with standard film, laminated safety glass, non reflective, utilization: embedded installation, slot: for Compact FlashTM card: 2, memory card automation: required, please refer to attachment ->Memory card, pluggable communication card (optional): no, heat dissipation: 24 W, Protection level (IEC/EN 60529, EN50178, VBG 4): IP65 (front), IP20 (back)
