SCHIELE DL42N-22 二级控制系统 包括设备控制级和信息管理级

DL42N-22     二级控制系统

SCHIELE DL42N-22是一种二级控制系统，包括设备控制级和信息管理级。在设备控制级上，它采用RMC200轧线控制系统，由10套ABBMasterPiece200/1过程站、3套MasterPiece90过程站、3台AdvantStation500系列操作站、1台VT340监控站及2台MasterAid220编程器构成。这些过程站通过MasterBus300网络通讯，每个MP200/1过程站通过一个DSCS140通讯板连接到MB300网络上，通讯板上可以设定地址开关，据此来确定该节点在网络上的位置。这种设计的故障诊断系统能完成测试过程开始前，运行故障诊断系统，检查轧钢生产控制系统是否处于良好状态的功能。

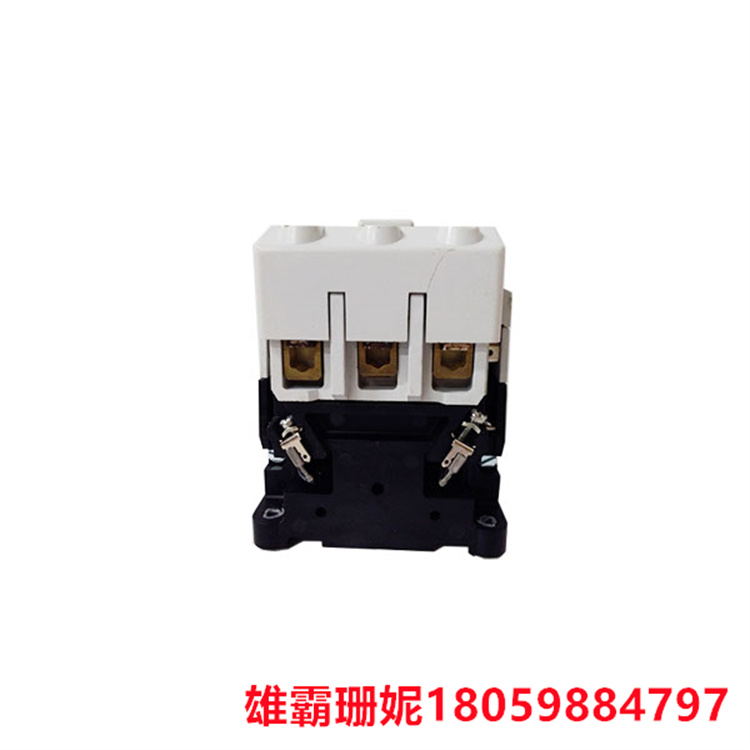

此外，SCHIELE DL42N-22可能还涉及交流接触器，通常用于电气控制和电路中，用于控制交流电设备的电流。

SCHIELE DL42N-22 is a secondary control system that includes equipment control level and information management level. At the equipment control level, it adopts the RMC200 rolling line control system, consisting of 10 ABBMaster Piece200/1 process stations, 3 MasterPiece90 process stations, 3 AdvantStation 500 series operation stations, 1 VT340 monitoring station, and 2 MasterAid220 programmers. These process stations communicate through the MasterBus300 network, and each MP200/1 process station is connected to the MB300 network through a DSCS140 communication board. Address switches can be set on the communication board to determine the node's position on the network. This designed fault diagnosis system can complete the function of running the fault diagnosis system to check whether the steel rolling production control system is in good condition before the testing process begins.
In addition, SCHIELE DL42N-22 may also involve AC contactors, commonly used in electrical control and circuits to control the current of AC equipment.
